Xiegu X6200 HF/50MHz Portable SDR Transceiver
Xiegu X6200 HF/50MHz Portable SDR Transceiver
Couldn't load pickup availability
- 30-Day Returns
- 18-Month Limited Warranty
- DHL Express · 3–7 Business Days
The Xiegu X6200 is a compact HF/50MHz direct-sampling SDR transceiver designed for portable and desktop operation. It delivers up to 8W with an external DC power supply or 5W from the detachable battery pack.
A built-in automatic antenna tuner, 4-inch color display, USB audio and CAT control, Wi-Fi, Bluetooth, SWR scanning, and extended receive coverage make the X6200 a versatile radio for voice, CW, digital modes, POTA, and travel.
Key Features
- HF and 50MHz amateur-band operation
- RF direct-sampling SDR architecture
- Up to 8W output with external DC power
- Up to 5W output from the detachable battery pack
- 4-inch 800 × 480 color display
- Built-in automatic antenna tuner
- Integrated spectrum scope and waterfall display
- Built-in SWR scanner
- USB-C CAT control, data connection, and digital audio
- Integrated voice and CW memory keyers
- Built-in FT8 decoding
- Wi-Fi and Bluetooth connectivity
- WFM broadcast and AM airband reception
- BNC antenna connector
- Compact design for portable, field, and desktop operation
Specifications & Parameters
General Specifications
Radio Architecture: RF direct-sampling SDR
Receive Coverage:
• 0.5–30MHz
• 50–54MHz
• 88–108MHz WFM broadcast band
• 108–136MHz AM aviation band
Operating Modes:
• USB
• LSB
• CW
• AM
• FM
• Digital modes through USB audio and CAT control
Minimum Tuning Step: 1Hz
External Power Requirement:
• 12–15V DC
• Negative-ground system
• A power supply rated for at least 3.5A is recommended
Antenna Impedance: 50Ω
Antenna Connector: BNC
Operating Temperature: 0°C to +50°C
Frequency Stability:
• ±1 ppm during the first 10 minutes after startup
• 1 ppm/hour at 25°C
Display: 4-inch color display, 800 × 480 pixels
Dimensions: Approximately 200 × 89 × 51mm, excluding protrusions
Weight: Approximately 880g, radio unit only
Transmitter Parameters
Transmitter Specifications
Transmit Frequency Ranges:
• 1.8–2.0MHz
• 3.5–3.9MHz
• 5.3515–5.3665MHz
• 7.0–7.2MHz
• 10.1–10.15MHz
• 14.0–14.35MHz
• 18.068–18.168MHz
• 21.0–21.45MHz
• 24.89–24.99MHz
• 28.0–29.7MHz
• 50–54MHz
RF Output Power:
• Up to 8W on SSB, CW, and FM with a 13.8V external power supply
• Up to 5W on SSB, CW, and FM using the detachable battery pack
• Rated output tolerance: ±1dB
Spurious Emission Suppression: ≥50dB
Carrier Suppression: ≥50dB
SSB Audio Response: 300–2700Hz at −6dB
Microphone Impedance: 200Ω–10kΩ; 600Ω typical
Note: Available transmit frequencies may differ by country, firmware version, and local regulations.
Receiver Parameters
Receiver Specifications
Receiver Type: RF direct-sampling
Minimum Discernible Signal: −138dBm
Sideband Suppression: ≥50dB
Typical Sensitivity:
• 0.5–1.799999MHz AM: 10μV
• 1.8–1.999999MHz SSB/CW: 0.20μV
• 1.8–1.999999MHz AM: 10μV
• 2–30MHz SSB/CW: 0.20μV
• 2–30MHz AM: 2μV
• 28–30MHz FM: 0.20μV
• 50–54MHz SSB/CW/FM: 0.20μV
• 50–54MHz AM: 2μV
• 88–108MHz WFM: Greater than 10μV
• 108–136MHz AM: Greater than 10μV
Audio Output: 0.5W into 4Ω at ≤10% THD
External Speaker/Headphone Impedance: 4–16Ω
Automatic Antenna Tuner
Automatic Antenna Tuner
Matching Impedance Range: Approximately 20–175Ω
Initial Tuning Time: ≤10 seconds
Memory Recall Tuning Time: ≤0.1 seconds
The built-in tuner is designed to compensate for moderate antenna impedance mismatch. It does not replace a properly installed and reasonably resonant antenna system.
Connectivity
• USB-C DEV port for CAT control, data communication, and USB audio
• USB HOST port for compatible external input devices
• MicroSD card slot
• 2.4GHz Wi-Fi supporting IEEE 802.11b/g/n
• Bluetooth 4.0
• 3.5mm ACC port
• 3.5mm CW key port
• 3.5mm stereo speaker/headphone output
• RJ45 multifunction microphone connection
• Remote-control support through compatible software
Important Power and Charging Notice
Important Power and Charging Information
Use a regulated 12–15V DC power supply capable of delivering at least 3.5A for external-power operation.
The supplied charging adapter is intended to charge the battery while the radio is turned off. It must not be used as the radio’s transmitting power supply.
Never apply more than 15V DC to the radio.
In The Box
• Xiegu X6200 transceiver

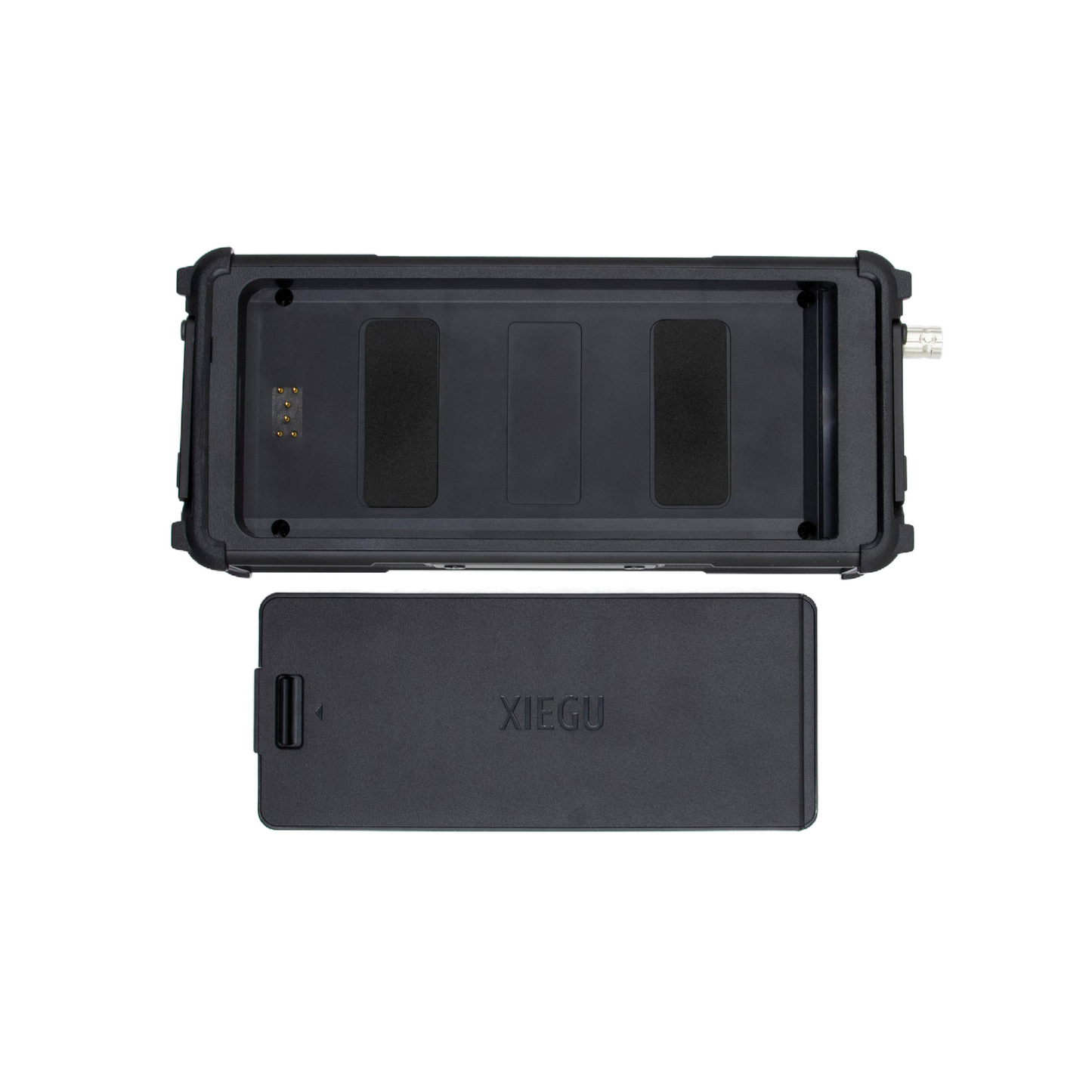

• Detachable rechargeable battery pack
• Multifunction hand microphone
• USB Type-C data cable
• Charging adapter
• DC power cable
• User manual
• Warranty card
• Certificate of conformity printed on the packaging label
FAQs
Is the Xiegu X6200 suitable for POTA and portable operation?
Yes. The X6200 combines an HF/50MHz transceiver, detachable battery, automatic antenna tuner, spectrum display, and digital-mode connectivity in one compact unit. It is well suited to POTA, travel, field communications, and other portable operations.
How much transmit power does the X6200 provide?
The X6200 delivers up to 8W on SSB, CW, and FM when connected to a suitable external DC power supply. Output is up to 5W when operating from the detachable battery pack.
Does the X6200 have a built-in antenna tuner?
Yes. Its automatic antenna tuner can match antenna impedances from approximately 20 to 175 ohms. For the best efficiency, always use an antenna that is reasonably resonant on the selected band.
Can the X6200 be used for FT8 and other digital modes?
Yes. The USB-C DEV connection provides CAT control, data communication, and digital audio through the radio’s built-in USB sound interface. The X6200 also includes onboard FT8 decoding. Appropriate computer software and configuration may still be required for full digital-mode operation.
What frequencies can the X6200 receive and transmit?
The X6200 receives 0.5–30MHz, 50–54MHz, 88–108MHz WFM broadcast signals, and 108–136MHz AM aviation signals. Transmission is limited to supported amateur-radio bands and may vary according to regional regulations and firmware configuration.
