Full HF output without an external amplifier
Up to 100W on HF and 90W on 50MHz, specified at plus or minus 1dB.
Xiegu's new 100W flagship-class radio
Xiegu G7250 100W HF and 6m SDR Transceiver
Direct RF sampling, a detachable 7-inch touchscreen controller, built-in ATU and network baseband capability.
Preview specifications. Final production details, price and availability are subject to confirmation.
100W
Maximum HF output
7 inch
Capacitive touchscreen controller
HF + 6m
0.5-30MHz and 50-54MHz receive coverage
Direct RF
Sampling SDR architecture
Built for a serious station. Flexible enough for yours.

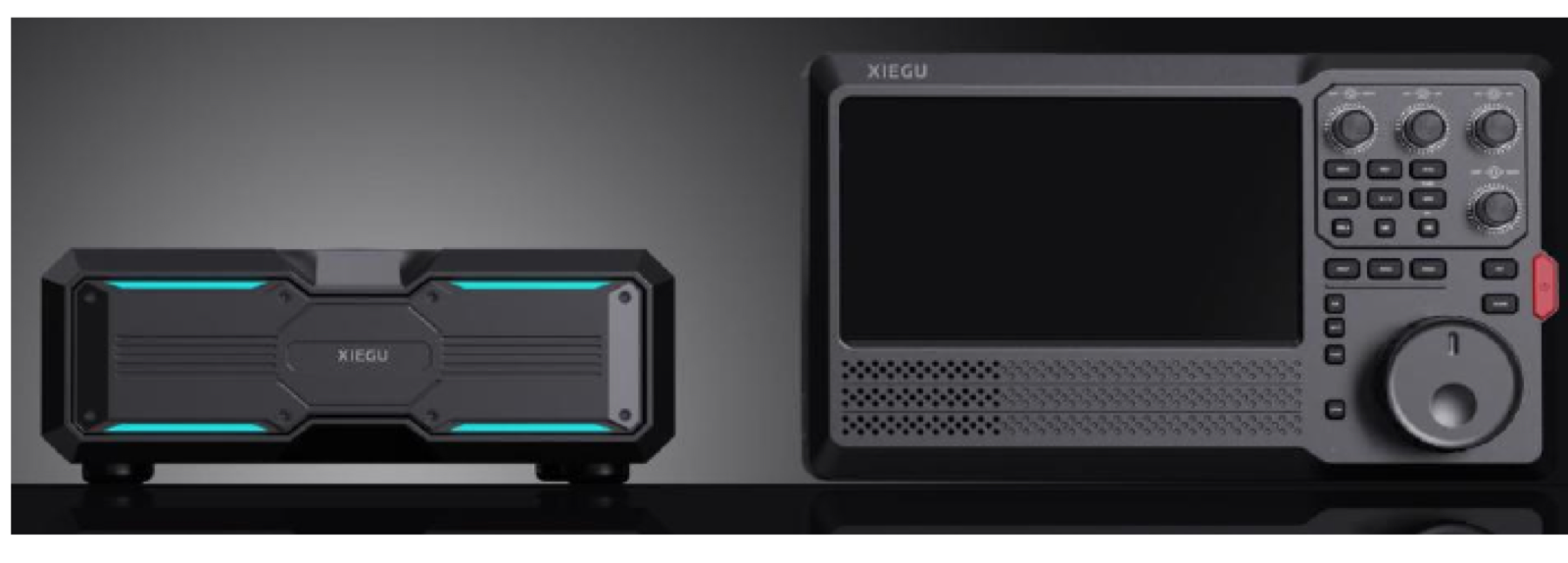

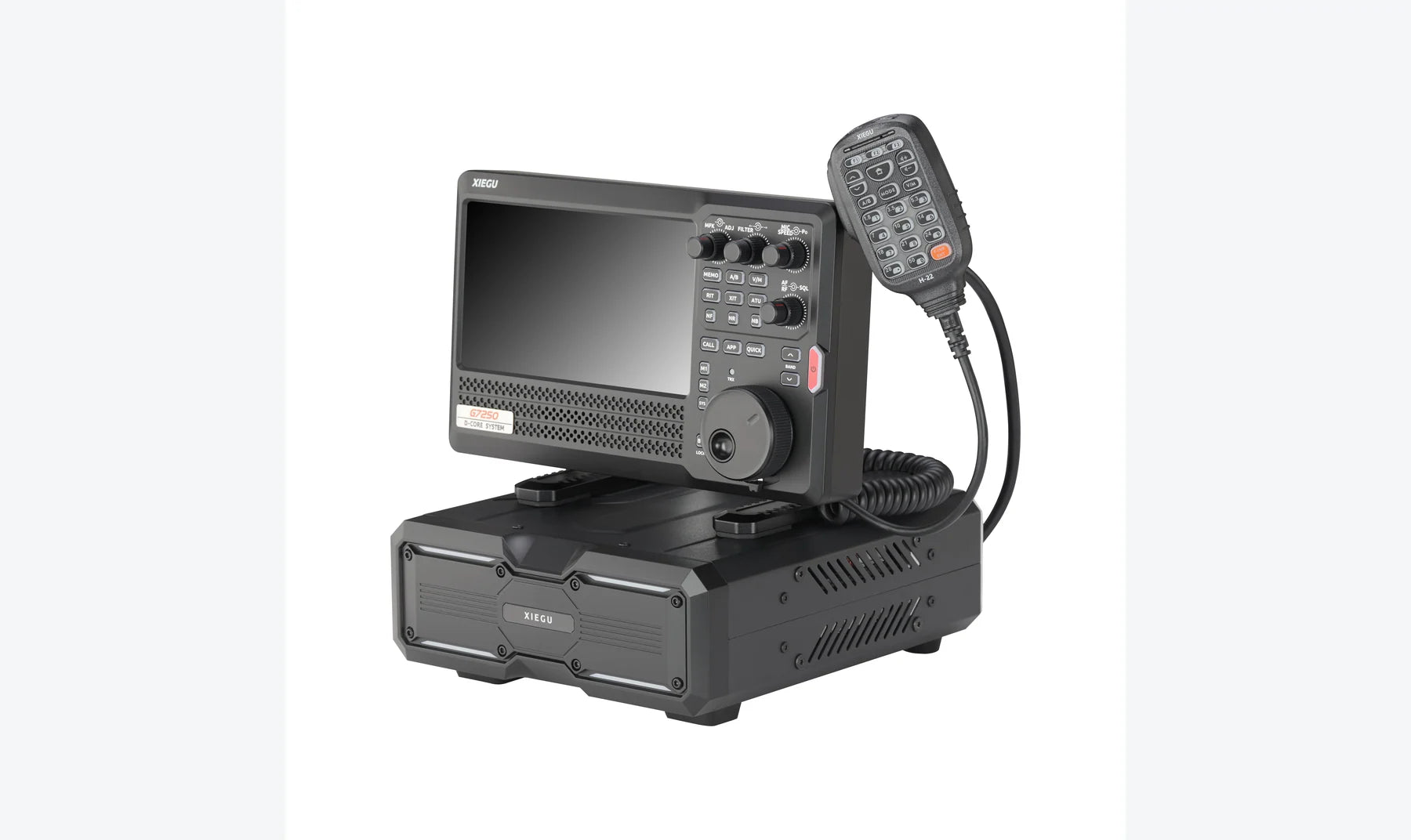

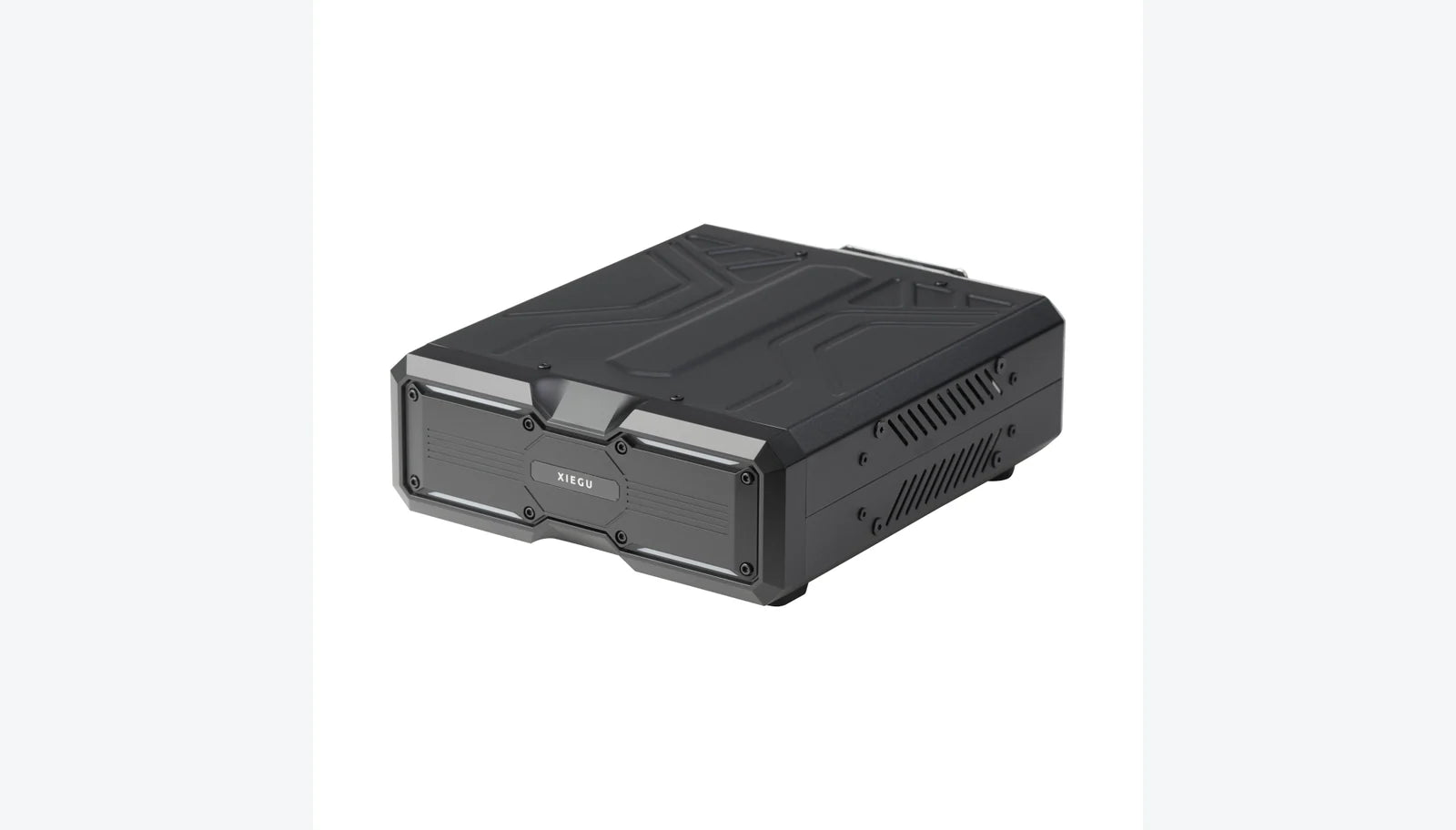

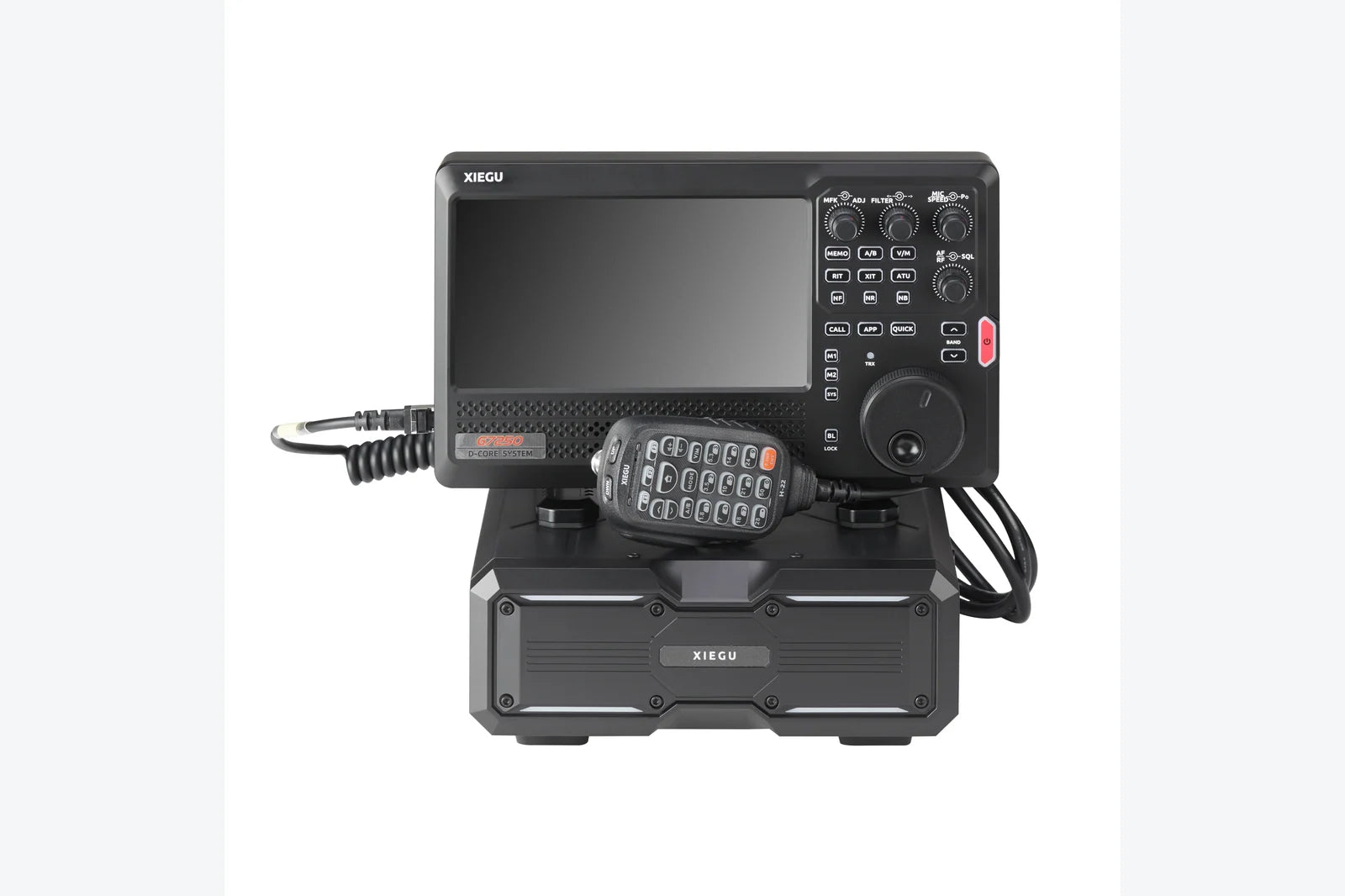

The G7250 pairs a high-power RF deck with a separate control head, giving operators more freedom in the shack, vehicle or remote setup.

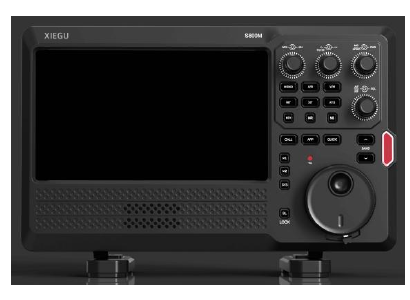

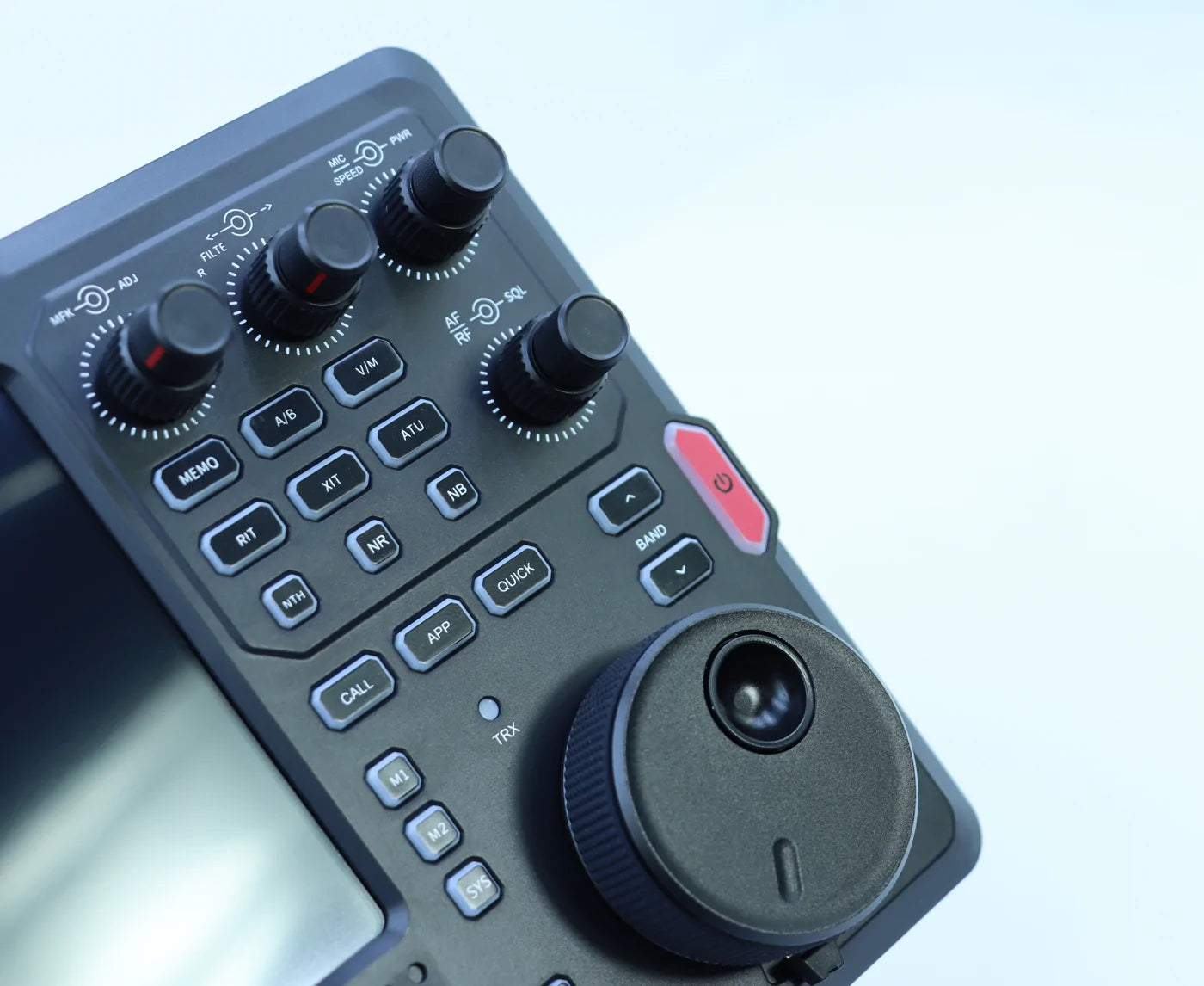

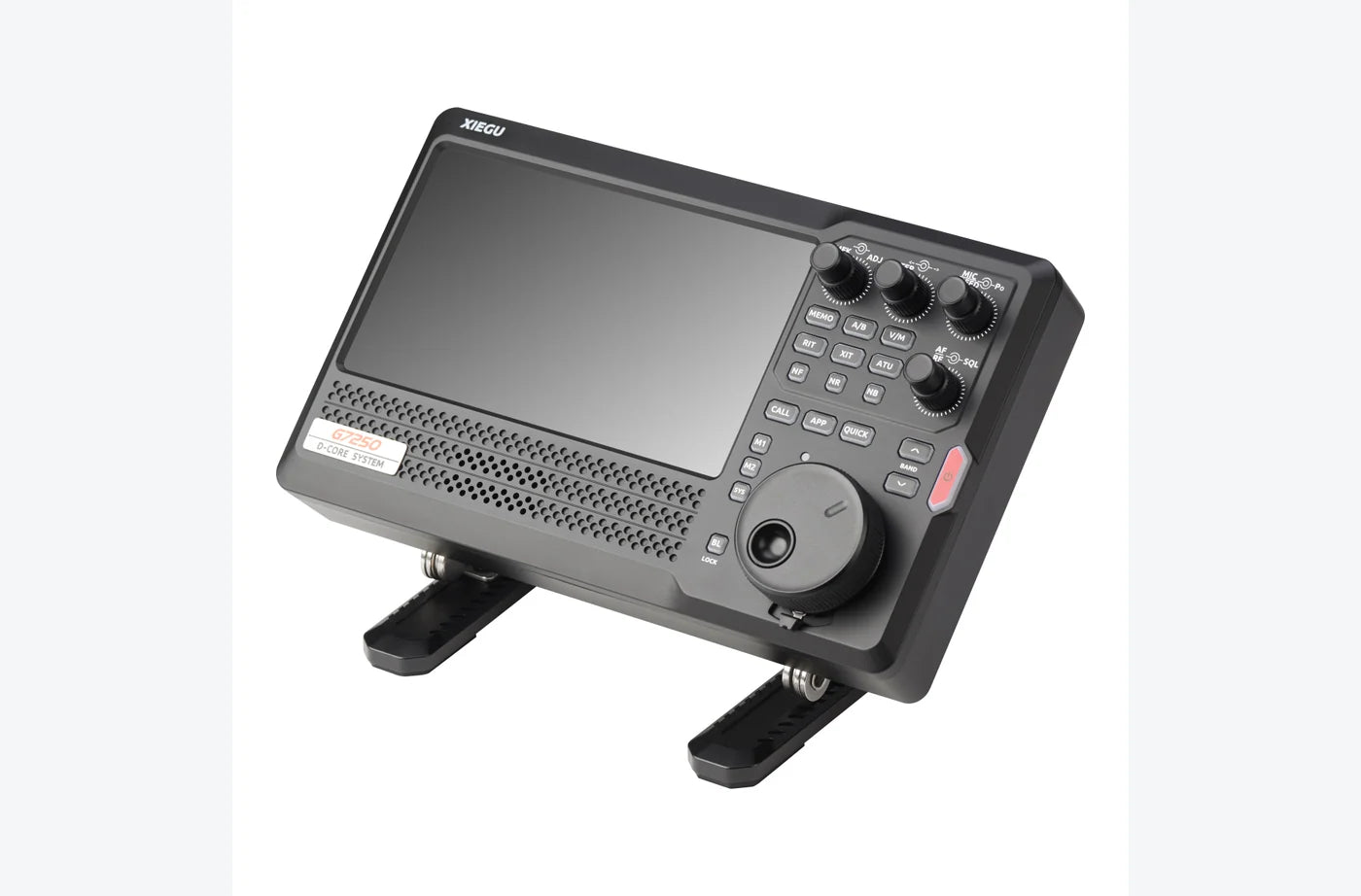

Touch when it is faster. Physical controls when they matter.
A high-resolution capacitive display works alongside full-featured knobs and buttons.
Direct RF sampling
Dedicated baseband and RF units support spectrum and waterfall display, adjustable filters and weak-signal operation.

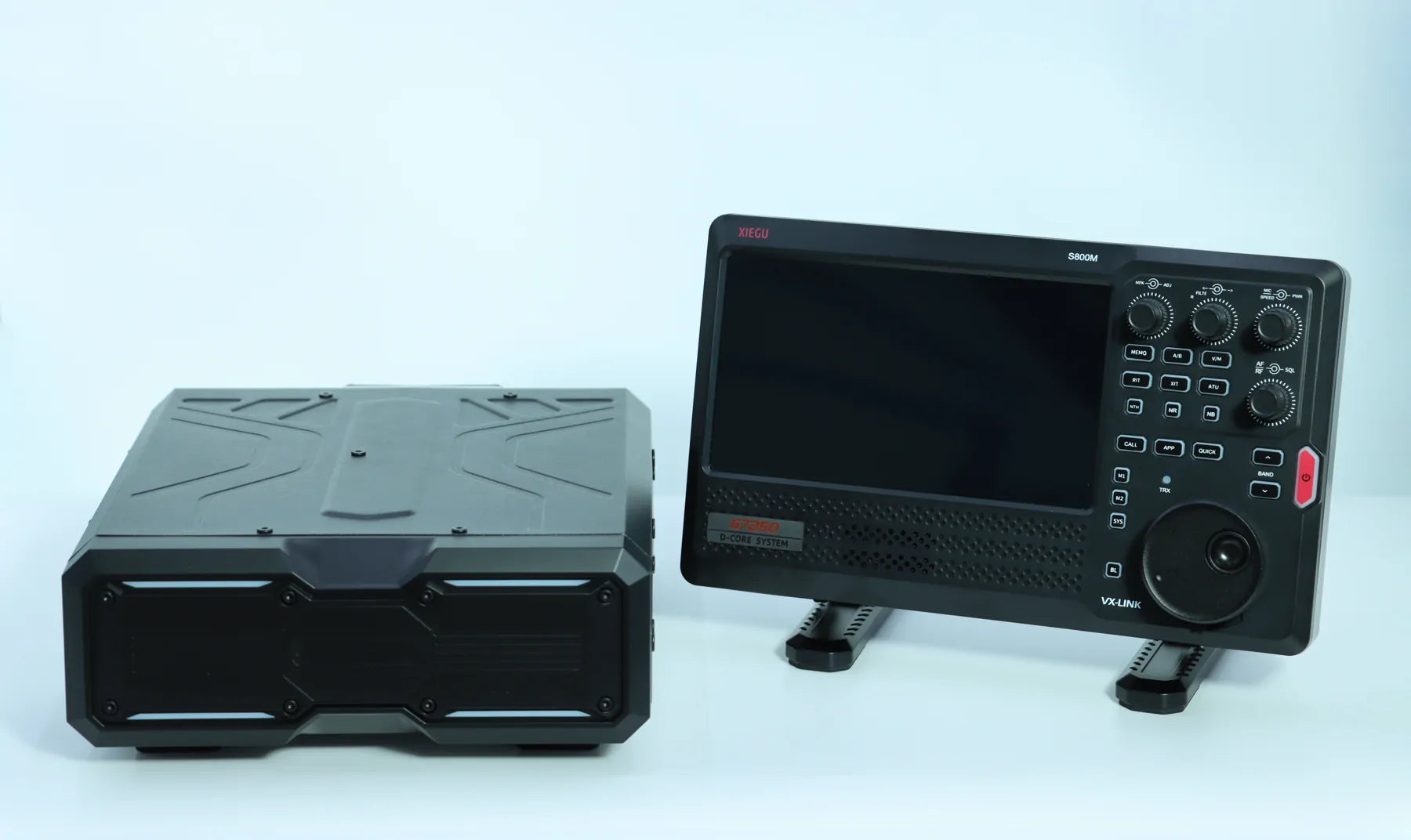

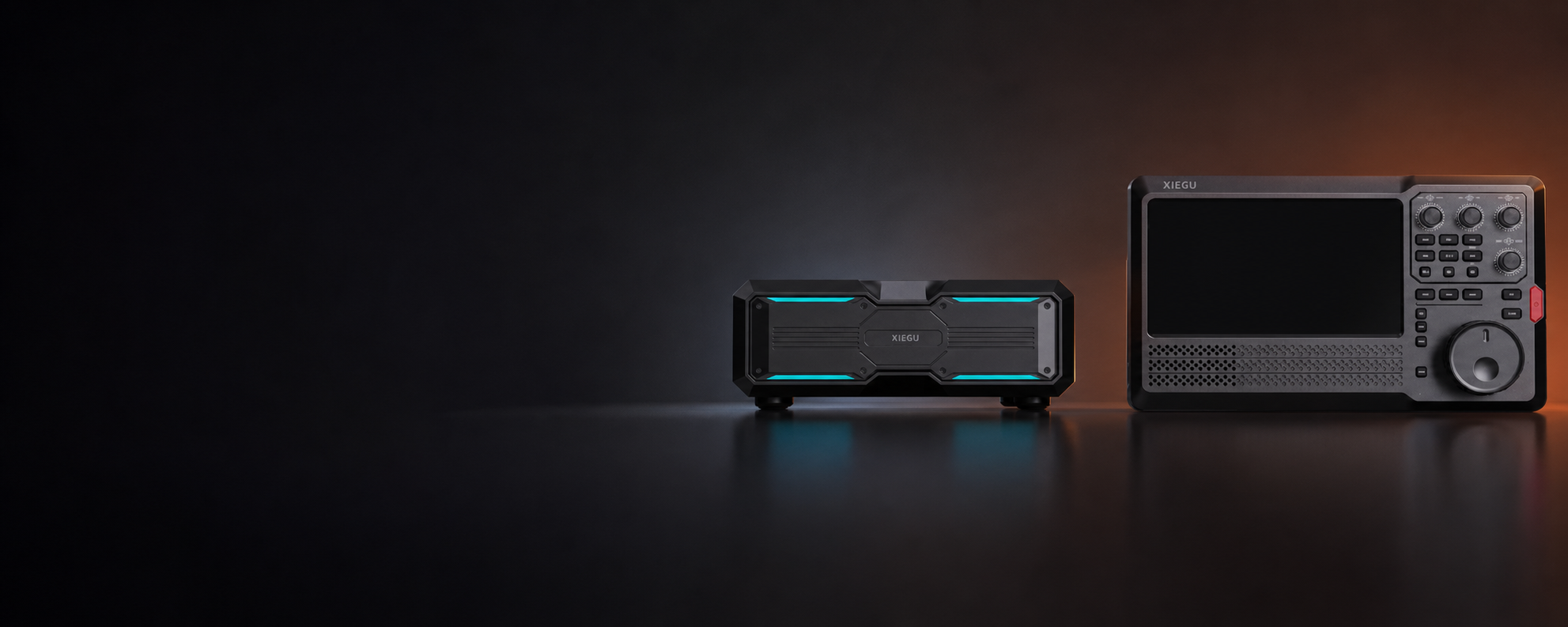

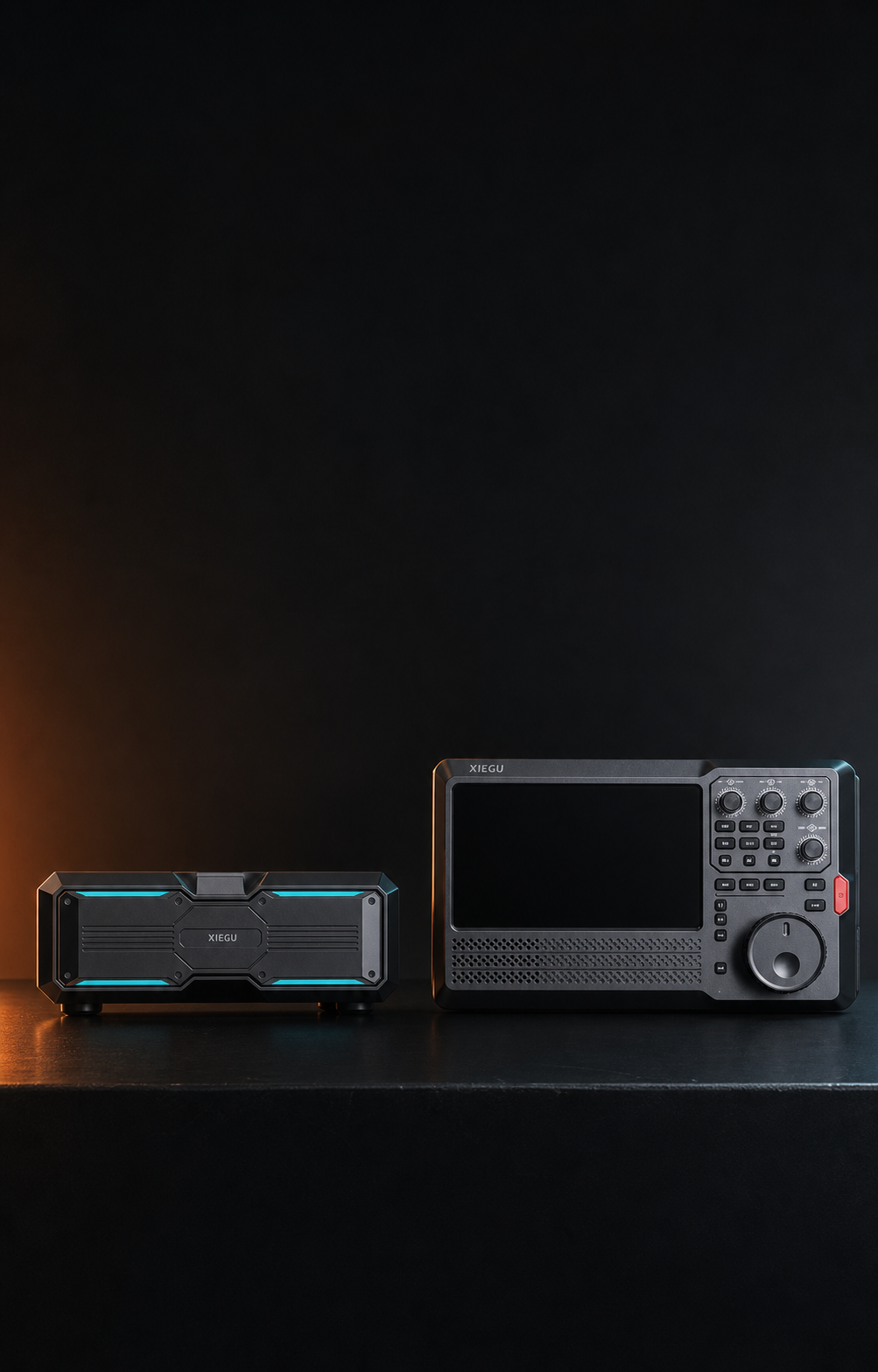

A split design with network potential
The control head and main body can be deployed separately. Published preview information also lists network baseband signal transmission.

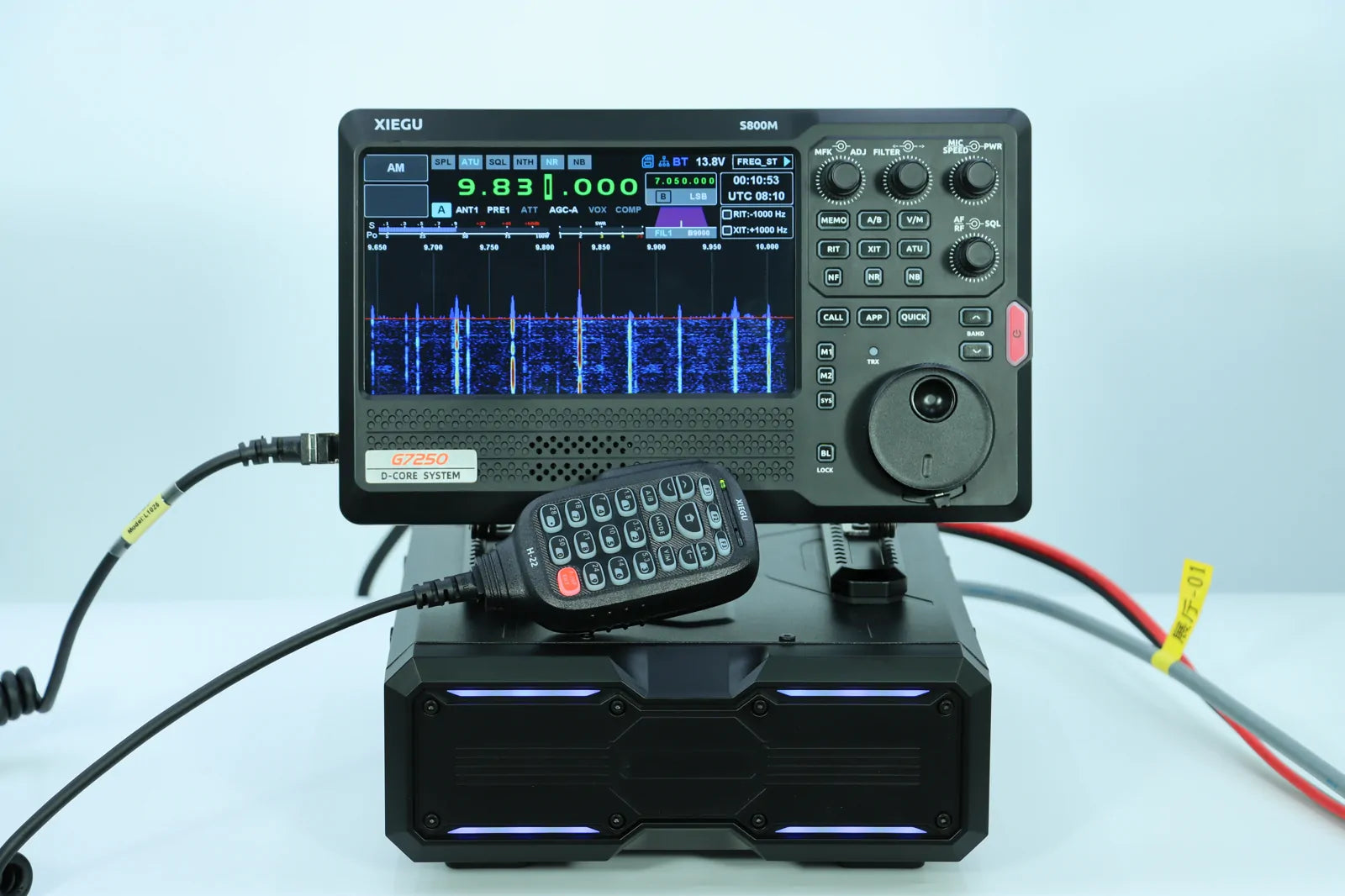

See and hear the G7250 on the air.
Watch the preview unit receive CW and USB signals through the S800M controller. The audio in this video comes from the radio.
Product shown is a preview unit. Final production appearance, connectors and supplied accessories may change.
Receive more. Shape the signal your way.

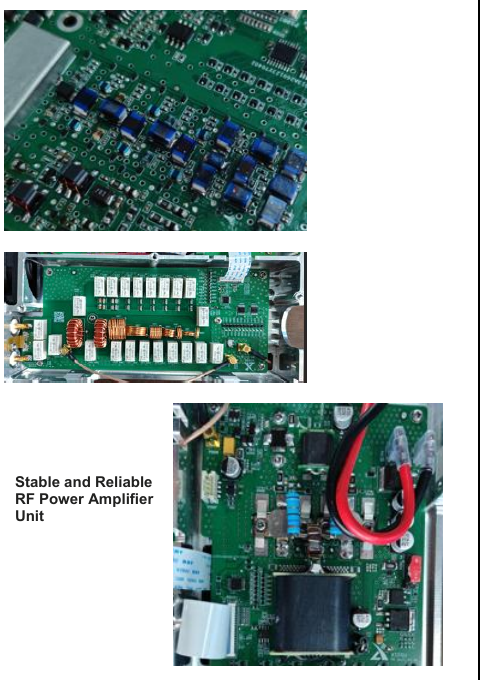

Multi-stage filters, high-Q inductors and a two-stage large-dynamic preamplifier are designed to improve selectivity and front-end dynamic range.
Adjustable digital filters
Digital noise reduction
Noise blanker
Noise threshold function
Spectrum and waterfall display
MDS specified at -138dBm
Voice recording and playback
Preset CW messages
The confirmed preview specifications
These figures come from the current manufacturer introduction. Final mass-production specifications may change.
20-150Ω
Built-in antenna tuner matching impedance range
≤10s
Initial antenna tuning time
≤0.1s
Memory tuning recall time
View all technical specifications
General
- Frequency range
- 0.5-30MHz; 50-54MHz
- Operating modes
- SSB, CW, NFM, AM, DIG
- Minimum tuning step
- 1Hz
- External power
- 13.8V±15%
- Operating temperature
- 0°C to 55°C
Receiver
- Sensitivity, SSB/CW/FM
- 0.2µV
- Sensitivity, AM
- 2µV
- Minimum discernible signal
- -138dBm
- Signal processing
- Digital filters, NR, NB, NTH
Transmitter
- HF output
- 100W ±1dB
- 50MHz output
- 90W ±1dB
- Spurious suppression
- ≥55dB
- Carrier suppression
- ≥40dB
- Sideband suppression
- ≥50dB
- SSB response
- 300-2700Hz (-6dB)
- FM deviation
- ±5kHz
- Microphone impedance
- 200Ω-10kΩ
Supported accessory listed in the current introduction: GY-10 external speaker. Dimensions, weight, connectors, supplied accessories, regional transmit ranges, networking details and final power requirements have not yet been confirmed.
Where the G7250 fits in the Xiegu line
Choose the G7250 for full-power station use, the X6200 for portable 6m operation, or the G90 for a compact and proven HF setup.
Swipe horizontally to compare all three radios.
| Feature | Xiegu G90 | Xiegu X6200 | Xiegu G7250 |
|---|---|---|---|
| Best suited to | Compact HF stations and field use | Portable HF and 6m operation | Full-power home, mobile and flexible station setups |
| Maximum output | 20W HF | 8W external power | 100W HF; 90W on 50MHz |
| 6-meter operation | No | Yes | Yes |
| Display | Compact color display | 4-inch color touchscreen | 7-inch capacitive touchscreen |
| Control layout | Detachable display panel | All-in-one portable radio | Separate display/controller and RF deck |
| Internal battery | No | Yes | Not announced |
| Built-in ATU | Yes | Yes | Yes, 20-150Ω published range |
Questions before launch
We will update this page as Xiegu confirms the final production radio.
When will the Xiegu G7250 be released?
Xiegu has announced the G7250, but a final public release date has not yet been confirmed. Join the priority list to receive the first-batch ordering notice.
What will the G7250 cost?
Final pricing has not yet been announced. Waitlist subscribers will receive the confirmed price before the general announcement, plus $50 off and free express shipping when G7250 ordering opens.
Is the G7250 a 100W radio?
The current manufacturer introduction specifies 100W ±1dB on HF and 90W ±1dB on 50MHz. Final production performance remains subject to confirmation.
Does it cover the 6-meter band?
Yes. The current preview lists 50-54MHz coverage. Actual transmit ranges may vary by regional version and local amateur radio regulations.
Are the controller and RF unit separate?
Yes. The G7250 uses a split design with a separate display/control unit and main RF body. Final connection options and supported separation distance have not yet been confirmed.
Does the G7250 include an antenna tuner?
Yes. The published tuner matching range is 20-150Ω, with initial tuning specified at 10 seconds or less and memory recall at 0.1 seconds or less.
What operating modes are supported?
The current information lists SSB, CW, NFM, AM and DIG modes.
Does it support remote operation?
The preview lists remote baseband signal transmission over a network. Supported software, control functions and network requirements have not yet been confirmed.
What comes in the box?
The final package contents have not been announced. We will publish the complete list of supplied accessories before taking full payment.
Can I order the first batch now?
Join the priority list now. No payment is required in the pre-launch stage. We will send the purchase link when price, allocation and expected shipping timing are confirmed.
